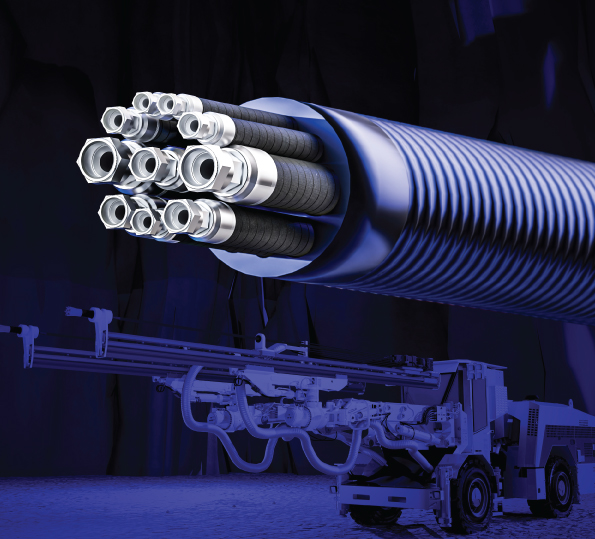

Pirtek Encapsulated Hose Looms

The Pirtek Encapsulated Hose Looms are a Heavy Duty product designed for demanding mining and industrial environments. These Hose Looms are engineered to provide:

• Maximum Hose Protection
• Hose Alignment Stability
• Full Traceability
• Reliable Solution for Managing Multiple Hydraulic and Service Lines in High-wear Applications

Key Features
• FRAS rated construction suitable for underground mining environments
• Pirtek multi-spiral hydraulic hoses for high pressure applications
• Polyurethane encapsulated outer protection for abrasion and impact resistance
• Engineered internal spacers to maintain hose separation and alignment
• Precision hose tensioning during assembly
• Unique 5 digit loom identification stamping
• Individual hose identification and QA documentation

Operational Advantages
• Reduced hose failures
• Extended service life
• Improved equipment reliability
• Reduced downtime
• Improved hose management and installation
• Enhanced safety in harsh environments

Design Specification
• Available in multiple loom lengths depending on application requirements
• Common manufactured lengths: approximately 7 m to 9.5 m
• Configurable hose quantities depending on machine requirements
• Current configurations manufactured with 9, 10, 11 and 15 hoses
• Final hose layout and loom configuration must be reviewed and confirmed prior to order placement
• Design verification ensures correct hose routing, spacing and polyurethane encapsulation coverage

Typical Applications

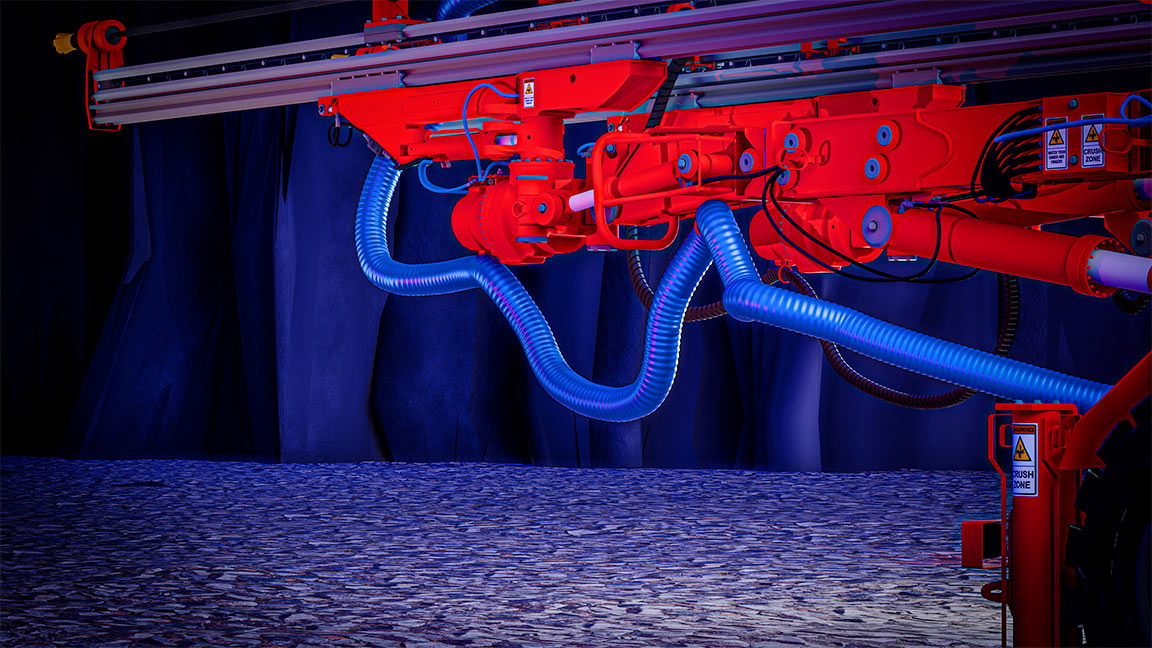

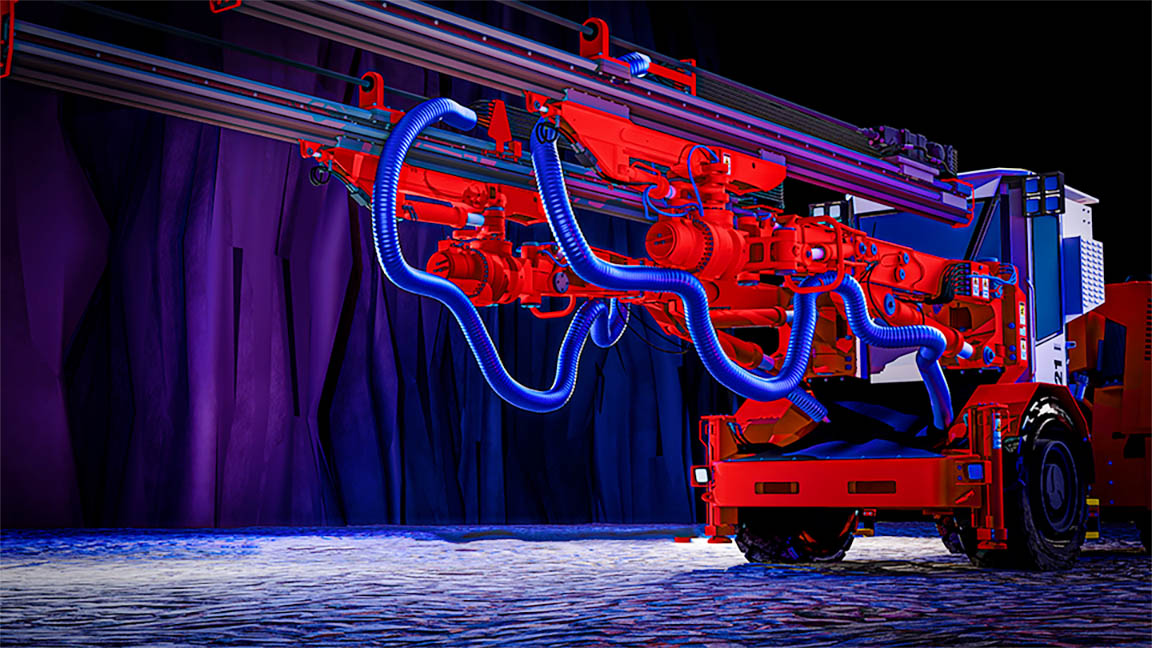

• Underground mining equipment
• Drill rigs and hydraulic power systems
• Heavy mobile mining plant
• Multiline hydraulic systems

Technical Specifications - Overview
• Safety Rating FRAS – Fire Resistant Antistatic
• Safety Factor 4:1
• Hose Type Pirtek MultiSpiral Hydraulic Hoses
• Hose Pressure Capabilities average WP 5800 PSI (depending on configuration)
• Outer Protection Polyurethane Encapsulation
• Typical Loom Length Approx. 7 m – 9.5 m
• Hose Quantity Options 9, 10, 11 or 15 hoses
• Traceability Individual Hose ID + Loom 5 Digit Identification

Contact
For technical specifications, custom configurations, or project support, please contact your nearest Pirtek Centre or call our 24/7 National Service Line on 134 222.

Pirtek - We'll Keep You Operating
